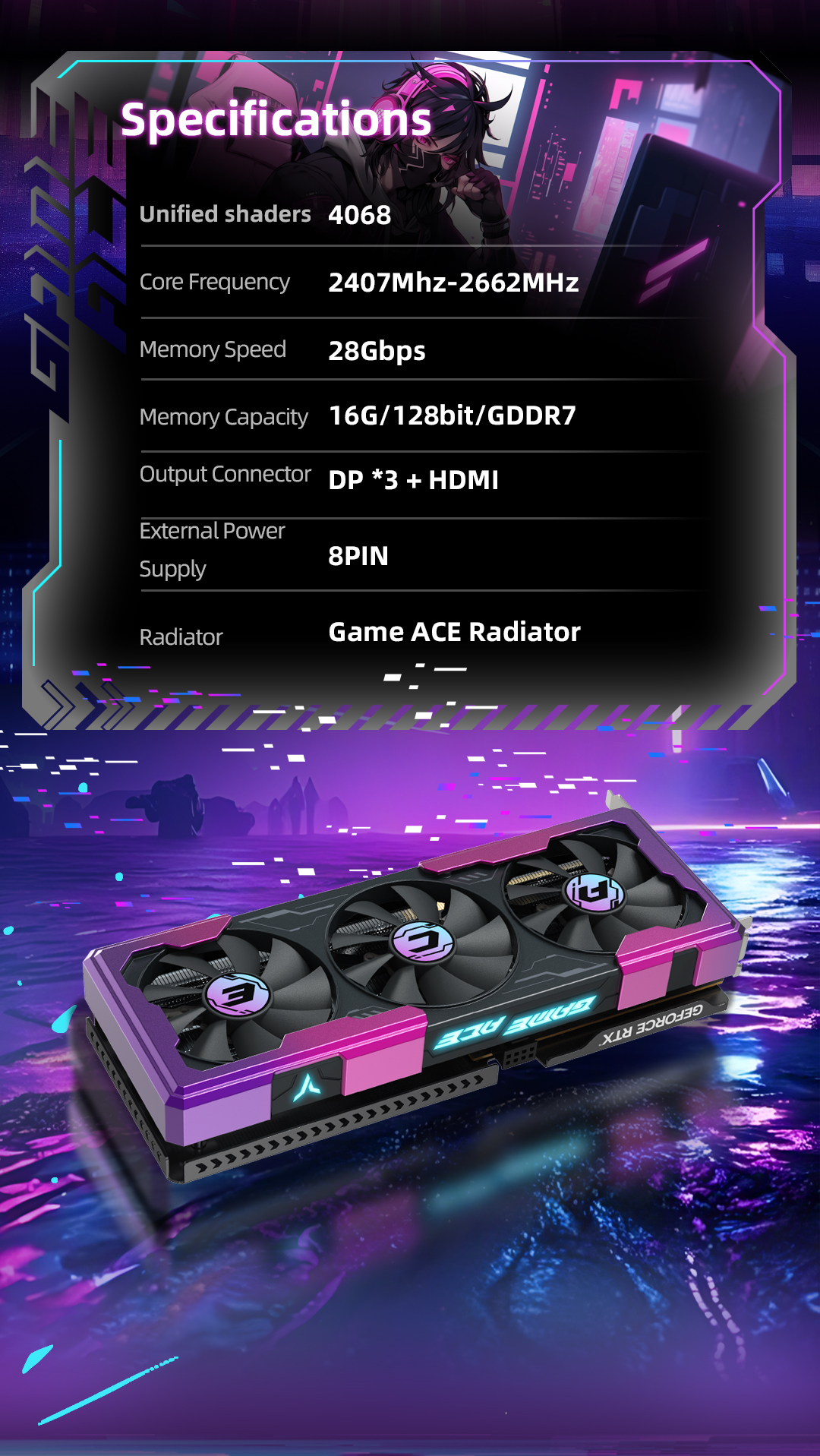

YESTON RTX 5060Ti 16G D7 GAME ACE

Core code: GB206

Unified shaders: 4608

Core frequency: 2407MHz-2662MHz

Memory frequency: 1750MHz

Memory rate: 28Gbps

Video memory capacity and specifications: 16G/128bit/GDDR7

Tensor Core(AI):759 AI TOPS

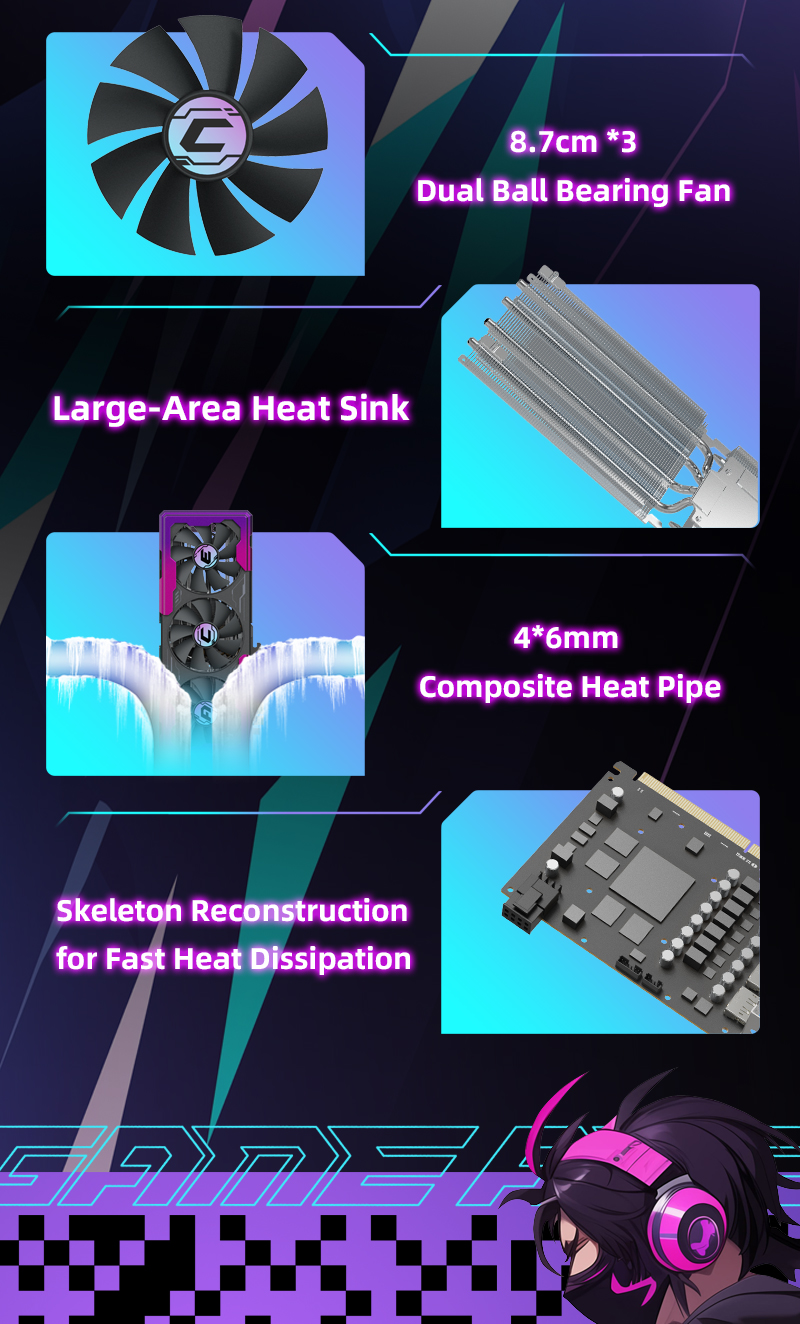

Radiator 4*6mm composite heat pipe, 8.7cm*3 double ball fans, nickel-plated copper base

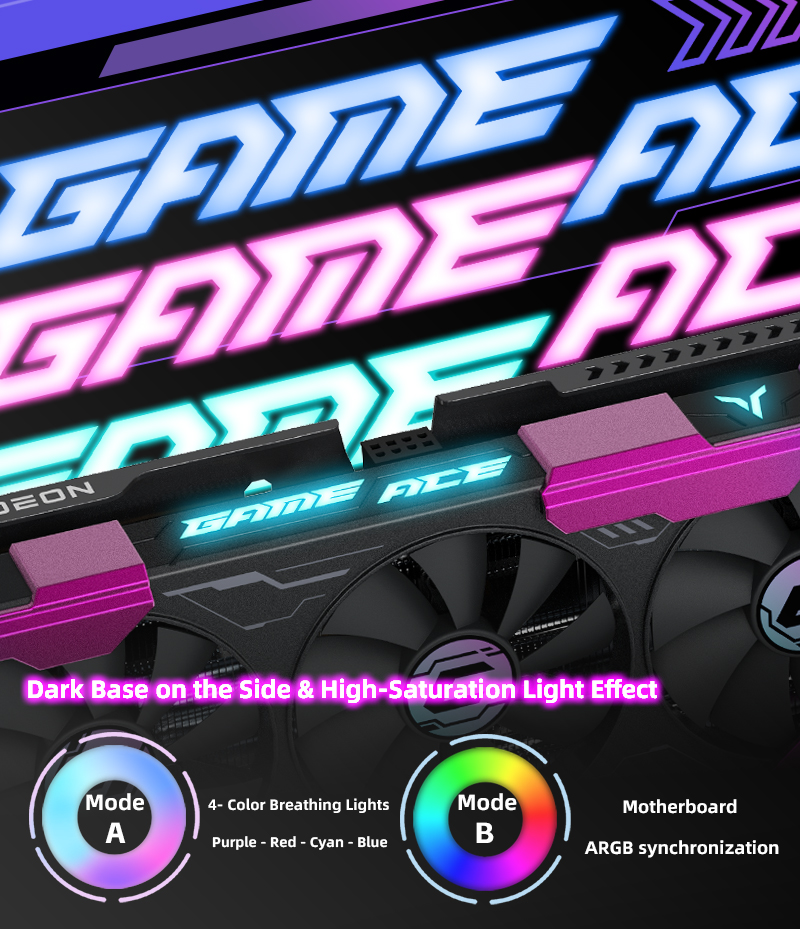

Light effect: ARGB. The default monochrome gradient breathing light can be synchronized with ARGB and cannot be turned off.

Fan features: 6Pin, adjustable speed, display of speed value

Bus interface: PCI-Express 5.0 x8

Encoding/decoding features: 4K H264 decoding/encoding, H265/HEVC decoding/encoding, AV1 decoding/encoding

Output interface: DP2.1b*3 + HDMI2.1b*1

Maximum resolution: supports up to 4K480Hz 12bit HDR. DP 8K165Hz, HDMI 8K120Hz.

Power supply design: 5+2 phases

External power supply: 8PIN * 1 (recommended power supply above 600W)

Graphics card size: 306*126*53mm (excluding bracket ears)

318*141*53mm (including baffle)

Weight: 1005g
